Product Details




Specification Description
Dimensions (H X W X D) 360 X 220 X 220 mm
Weight 15 Kgs
Type Of Machine Automatic
Operating Features Timer Based Burning
Heater Ceramic Heater Of 1.2kW
Insulation Ceramic Wool Blanket Of 20 mm Thickness Wrapped 4 Times
Filter Ceramic Wool Blanket
Chamber Capacity Holds Up To 10 Pads At A Time
Burning Time 10 – 12 Minutes Per Cycle, 10 Napkins Per Cycle & Maximum Cycles Are 7
Type Of Pads All Types Of Folded Pads
Exterior & Interior Body Stainless Steel (SS304) with Epoxy
Display Heater On/Off (Green) Indicator, Machine On/Off (Red) Indicator, Start Button, Temperature Control Knob & Fuse Switch (Tripper)
Working Temperature Operating Temperature Range: 350°C To 500°C
Emission 2” Emission Outlet; Aluminium (Semi Rigid) Hose Of 125 MM
Collection Ash Is Collected Within The Ash Tray
Ash Disposal 1 MG Of Ash Per Pad, Water Soluble
Operating Source Electronic (220/240 V), Adaptor Provided For 15A, 3 Pin Plug Point
Installation Wall Mounted (No Stand Required)
Colour Black
Variations – Capacity 80 and 100 Napkins Per Day
Variations – Smoke Control Can Be Fitted With An External Smoke Control Unit At Extra Cost
Option – Cobranding Available At Extra Cost

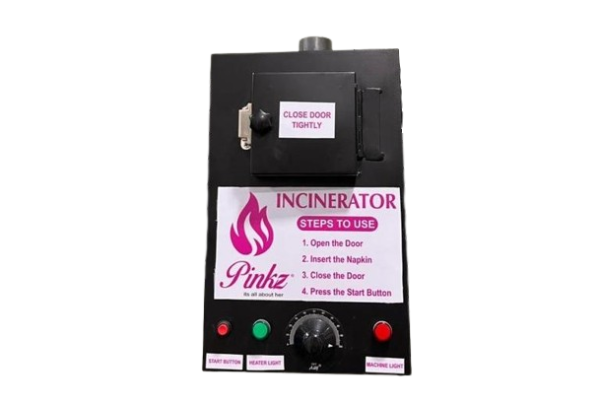

50 Per Day Timer Based, Automatic Sanitary Napkin Burner.
